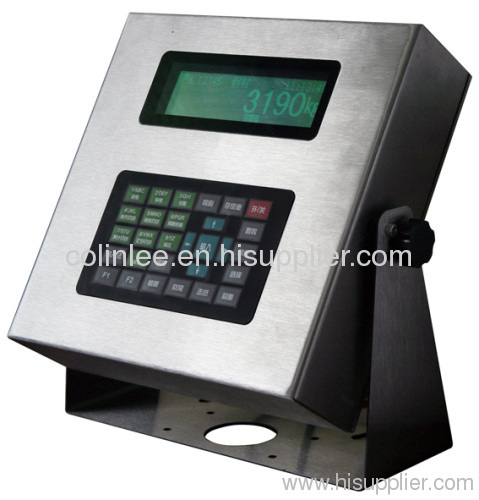

Truck scale weighing indicator D18 (12-24 load cells)

Payment Terms:	T/T
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: XK3190-D18

Production Capacity: 20000pcs/month

Delivery Date: 3 weeks

Truck scale weighing indicator: 12 to 24 load cells connect...

Means of Transport: Ocean

Packing: 1pcs/carton

Brand Name: YAOHUA

Excellent truck scale weighing indicator. With friendly operation window, it is widely applied in static weighing system equipped with 12~24 load cell

XK3190-D18

Weighing indicator XK3190-D18 adopts ARM and high precision A/D conversion technology, and it¡¯s an excellent truck scale weighing indicator. With friendly operation window, it¡¯s widely applied in static weighing system equipped with 12~24 analog load cells.

User-friendly operation, two-dimensional rolling menu bar management, plentiful operation hint information

Chinese Pinyin/English/Numeric/Sign input methods similar like mobile phone model T9

Able to set up metrology parameters related to truck scale weighing indicator

Enhanced version configuration £ºenternet connector 10Base-T/100 Base-TX(optional),USBconnector(optional),PS/2 keyboard socket(optional)£¬able to operate by PC keyboard

USB module(optional)for U-Disk and interface for Modbus

Static axle weighing function

Standard Function:

Non-linearity and calibration error correction function

Able to save 1000 weighing records, 1000 truck records consisting of truck ID and corresponding tare weight, 1000 goods records, 50 overload records

Able to set up print function for auto/manual, no condition/under condition, daily/sorted statistics report diprinting

With RS-232C/RS422/RS485(optional) communication interface, current loop interface, standard parallel print interface

Able to display and print goods name, truck ID, and customer name

Shortcut key for truck ID,goods ID,etc

Accuracy grade III, n=5000

A/D conversion method: ¡Æ-¦¤

A/D conversion speed: 50~200 times/sec.

Input signal range: -20~+20mV

Non-linearity: 0.0015%FS

Temperature drift at zero: ¡Ü0.05uV/¡æ

Max. sensitivity: 0.5uV/d

Load cell excitation: AC 5V,250mA

Max. connection number of load cell: 12 at 350 ohm or 24 at 700 ohm

Load cell connection mode: 6 wire, auto compensation for long distance

Clock: real clock without effect on power off,show year,month,date,hour,minute,second£¬auto leap-year and leap month

Standard scoreboard interface with 20mA current loop method, serial sending with baud rate 600, transmission didistance¡Ü2000 meters

Standard RS232 communication interface, RS422/RS485 (optional), with selectable baud rate, transmission didistance RS232¡Ü15 meters, RS422/RS485¡Ü1000 meters;

Standard parallel print interface

Optional built-in printer

Power supply: AC 110~220V,50~60HZ, currency¡Ü0.3A; DC 6V~8V(optional), currency¡Ü0.6A(no printing)/ currency¡Ü3A(printing)
High precision A/D conversion, verified counts 5000
